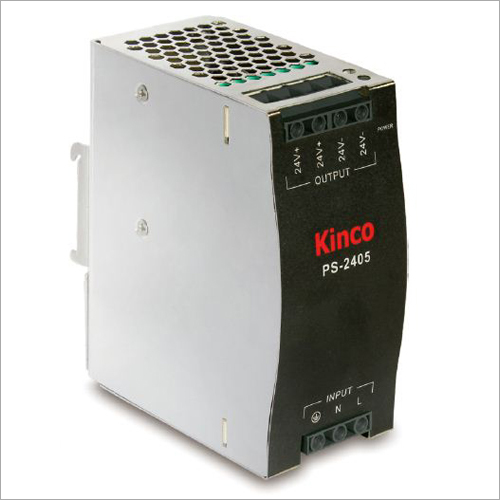

100W Kinco SMPS

Name: 100W Kinco SMPS
Brand: VEDANT ENGINEERING SERVICES
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

100W Kinco SMPS Specification

Control Type
SMPS (Switch Mode Power Supply)

Mounting Type
DIN Rail / Panel Mount

Phase
Single Phase

IP Rating
IP20

Features
Short Circuit, Over Current, Over Voltage Protection

Automation Grade
Automatic

Load Capacity
4.2A at 24VDC

Frequency
50/60 Hz

Weight
340 g

Application
Industrial Automation, PLC, HMI, Sensors

Remote Control
Yes

Connectivity Type
Terminal Block

Material
Metal Body

Power
100 W

Temperature
-10C to +60C

Voltage
Input: 180-264VAC, Output: 24VDC

Housing Material
Flame Retardant Plastic, Metal

Storage Temperature
-20C to 85C

Mounting Orientation
Vertical/Horizontal

Protection
Over Voltage, Over Temperature, Short Circuit, Over Load

Isolation Voltage
3000VAC

Efficiency
>85%

Ripple & Noise
<100mVp-p

Dimension
Varies by model (e.g. 1117836mm for 35W)

Output Current
0.42A / 1.25A / 2.5A / 6.25A (based on specific model)

About 100W Kinco SMPS

MODEL	PS-2401	PS-2402	PS-2405
DC VOLTAGE	24V	24V	24V
RATED CURRENT	1A	2.5A	5A
CURRENT RANGE	01A	02.5A	05A
RATED POWER	24W	60W	120W
RIPPLE & NOISE(Max)2	80mVp-p	120mVp-p	200mVp-p
VOLTAGE TOLERANCE	2%	2%	2%
LINE REGULATION	1%	1%	1%
LOAD REGULATION	2%	2%	2%
SETUP TIME1	500mS/230V 1000mS/115V @ full load	500mS/230V 1000mS/115V @ full load	500mS/230V 1000mS/115V @ full load
RISE TIME1	30mS @ full load	30mS @ full load	30mS @ full load
HOLD UP TIME (Typ.)	50mS/230V 20mS/115V @ full load	50mS/230V 20mS/115V @ full load	50mS/230V 20mS/115V @ full load
VOLTAGE RANGE	100240VAC 120370VDC	100240VAC 120370VDC	100240VAC 120370VDC
FREQUENCY RANGE	4763Hz	4763Hz	4763Hz
EFFICIENCY (Typ.)	88%	89%	88%
AC CURRENT(Max.)	< 0.55A	< 1.2A	< 2.3A
INRUSH CURRENT(Typ.)	COLD START 20A/115VAC 40A/230VAC	COLD START 20A/115VAC 40A/230VAC	COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT	<1mA/240VAC	<1mA/240VAC	<1mA/240VAC
SHORT CIRCUIT	Hiccup Mode, Recovers automatically after fault condition is removed.	Hiccup Mode, Recovers automatically after fault condition is removed.	Hiccup Mode, Recovers automatically after fault condition is removed.
ENVIRONMENT
WORKING TEMP.	-20+70 Refer to Derating curve)	-20+70 Refer to Derating curve)	-20+70 Refer to Derating curve)
WORKING HUMIDITY	20 90% RH Non-condensing	20 90% RH Non-condensing	20 90% RH Non-condensing
STORAGE TEMP.	-40 +850	-40 +850	-40 +850
STORAGE HUMIDITY	10 95% RH	10 95% RH	10 95% RH
SATETY STANDARDS	EN60950-1 approved	EN60950-1 approved	EN60950-1 approved
WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC EMISSION	Compliance to EN55022 (CISPR22) CLASS B ,EN61000-3-2,-3	Compliance to EN55022 (CISPR22) CLASS B ,EN61000-3-2,-3	Compliance to EN55022 (CISPR22) CLASS B ,EN61000-3-2,-3
EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11 EN61000-6-1 cirteria A	Compliance to EN61000-4-2,3,4,5,6,8,11 EN61000-6-1 cirteria A	Compliance to EN61000-4-2,3,4,5,6,8,11 EN61000-6-1 cirteria A
DIMENSION	906345MM (LHW)	906345MM (LHW)	1259955MM (LHW)
WEIGHT	160g	160g	450g

Versatile Output Options

The Kinco SMPS line offers multiple output current options ranging from 0.42A to 6.25A, catering to a wide variety of automation and industrial requirements. Each model provides a stable 24VDC output, making it easy to select the ideal specification for your application, whether its powering PLCs, HMIs, or sensors.

Robust Protection and Efficiency

Engineered with built-in protections including over-voltage, over-temperature, short circuit, and overload safeguards, the Kinco SMPS ensures both device safety and operational longevity. Its efficiency rating of over 85% and low ripple noise help maintain reliable and quiet performance in industrial environments.

Easy Installation and Flexible Mounting

Designed for straightforward integration, the SMPS can be installed vertically or horizontally, and supports both DIN rail and panel mounting. The terminal block connectivity streamlines wiring in various control cabinets, helping you deploy power solutions quickly and efficiently.

FAQs of Kinco SMPS:

Q: How do I choose the correct Kinco SMPS model for my requirement?

A: Selecting the right SMPS model depends on your applications current demand. The Kinco SMPS range offers multiple output currents (0.42A, 1.25A, 2.5A, 6.25A), so you should match your total device load to the appropriate models output, ensuring reliable and efficient power delivery.

Q: What are the typical applications for the Kinco SMPS?

A: The Kinco SMPS is tailored for industrial automation, including powering Programmable Logic Controllers (PLCs), Human Machine Interfaces (HMIs), sensors, and other control devices. Its robust features make it suitable for use by OEMs, system integrators, and panel builders.

Q: When should I consider replacing my Kinco SMPS unit?

A: Replace your SMPS if you notice persistent output voltage fluctuations, excessive noise, or if built-in protections trigger frequently. Regular maintenance checks and monitoring operational temperature can help prevent unexpected failures and extend service life.

Q: Where can I install the Kinco SMPS in control panels?

A: The Kinco SMPS supports both DIN rail and panel mounting, offering flexibility for installation in diverse control cabinets. Its IP20 rating is suitable for indoor industrial environments, and it can be positioned vertically or horizontally to best fit available space.

Q: What are the benefits of natural air cooling in the Kinco SMPS design?

A: Natural air cooling means the SMPS operates without fans, resulting in quieter operation, lower maintenance needs, and reduced dust accumulation, which is ideal for clean and reliable performance in factory settings.

Q: How does the SMPS protect connected equipment against electrical faults?

A: Kinco SMPS units come with multiple protections, including over-voltage, over-temperature, short-circuit, and overload safeguards. These features prevent equipment damage and ensure reliable power supply during challenging operating conditions.
